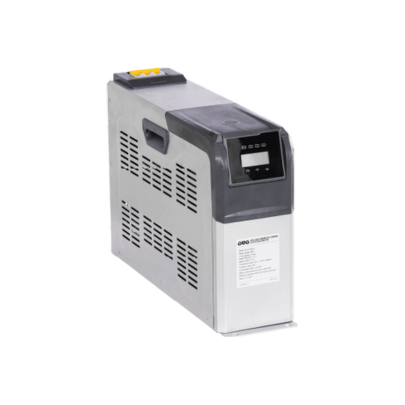

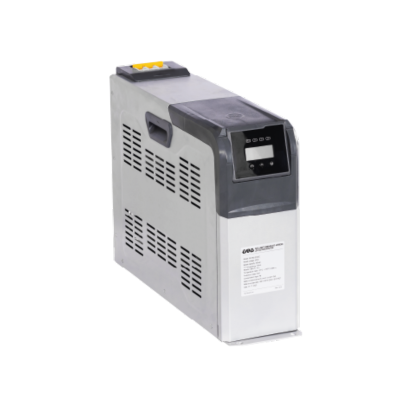

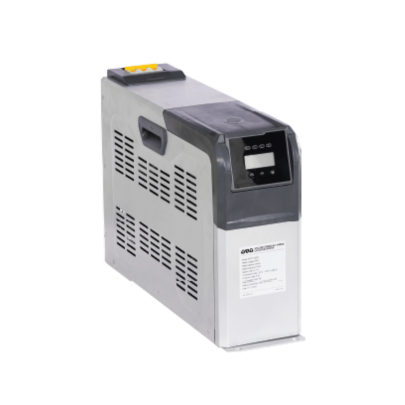

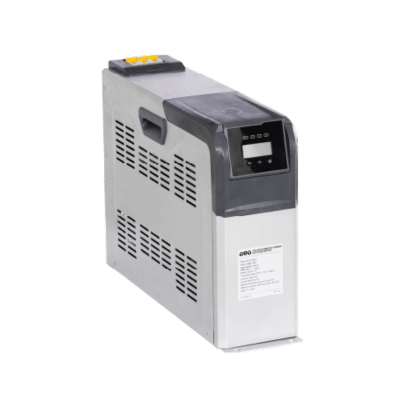

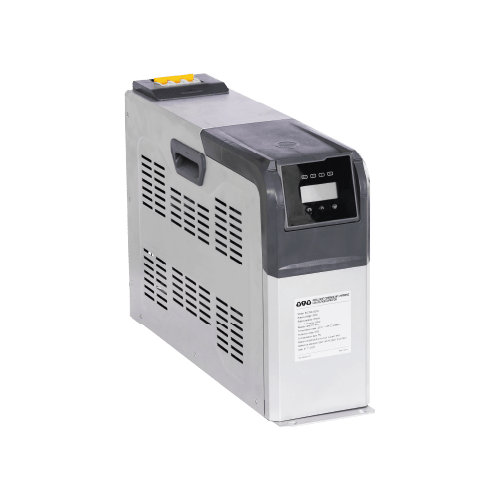

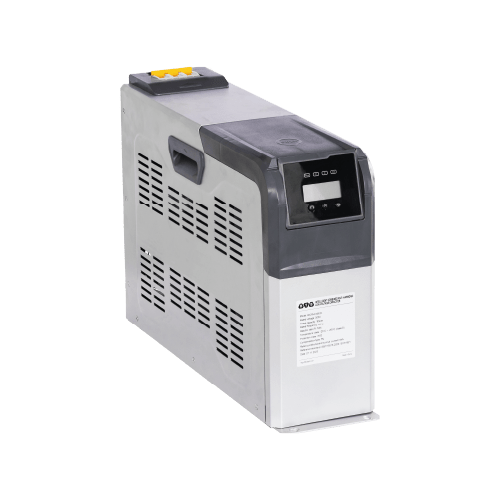

Intelligent capacitor
Intelligent capacitor

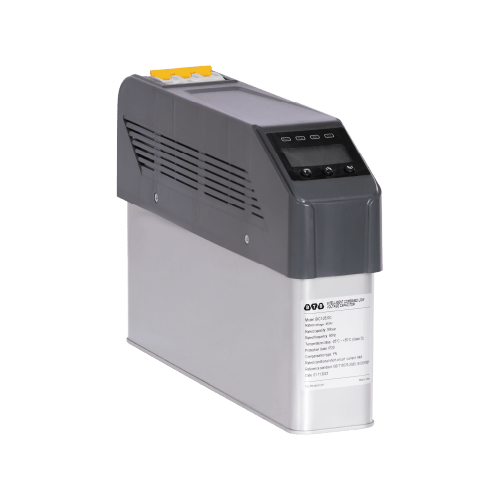

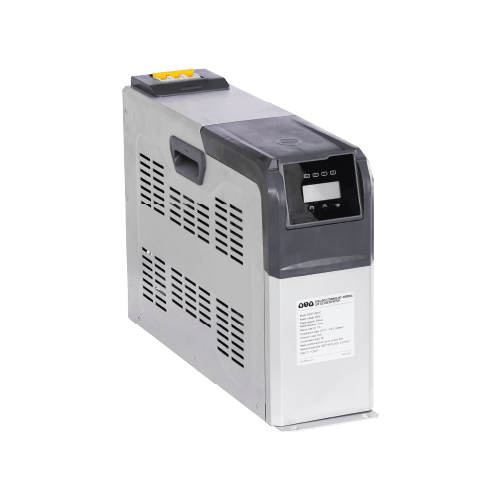

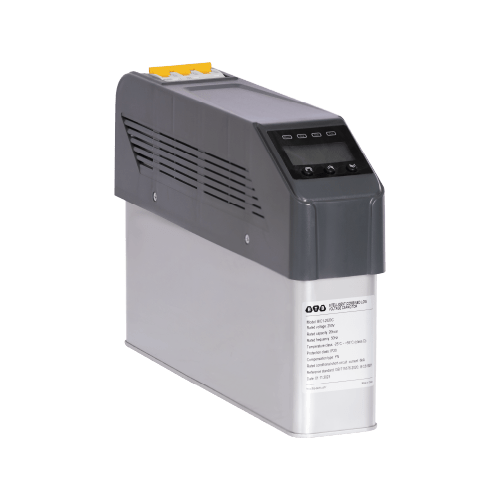

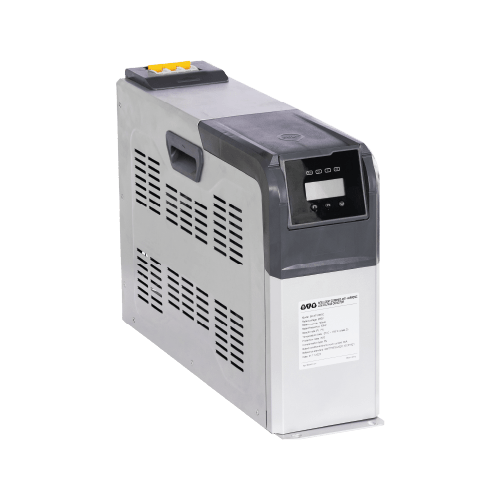

Code BIC1
Power range: 5~30kVAr
Connection: 3P (split phase)

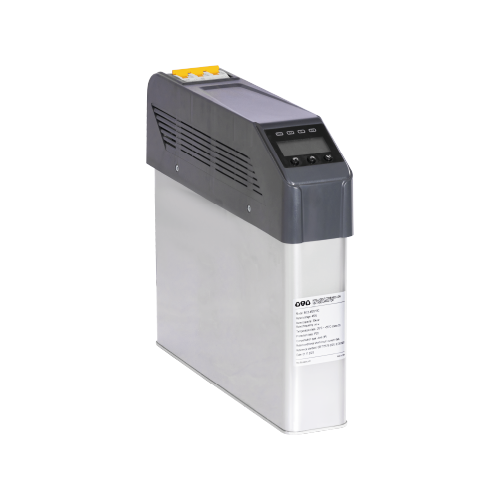

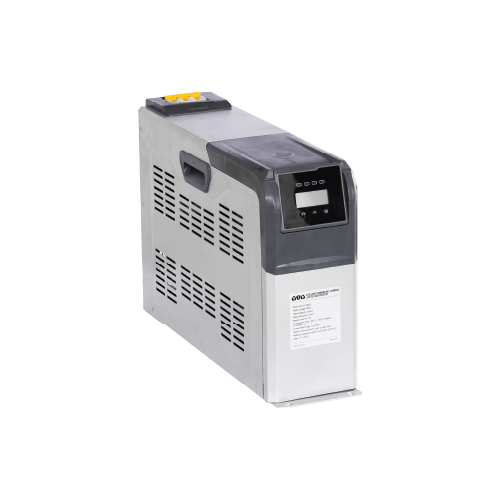

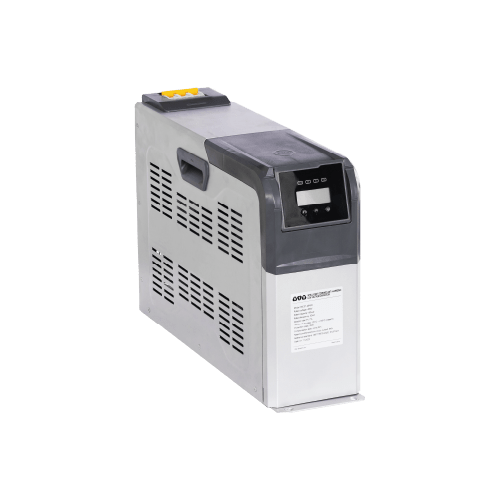

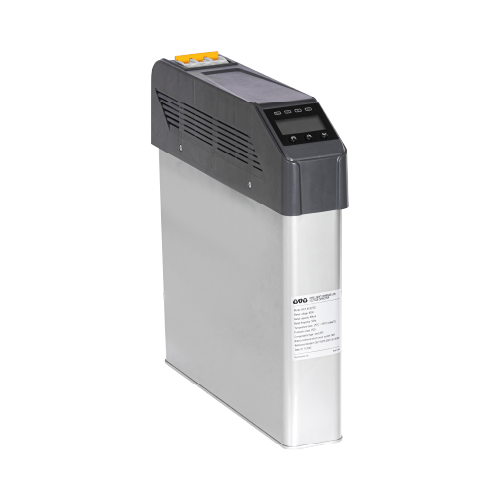

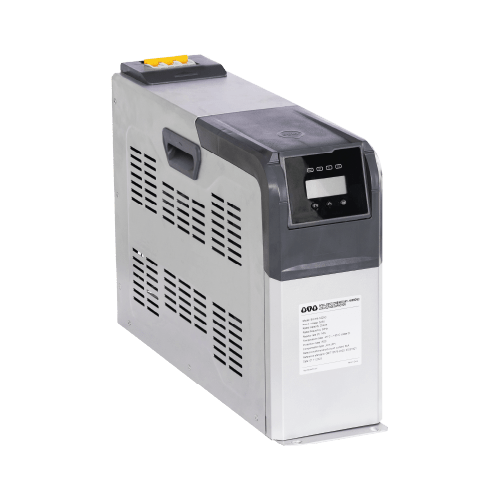

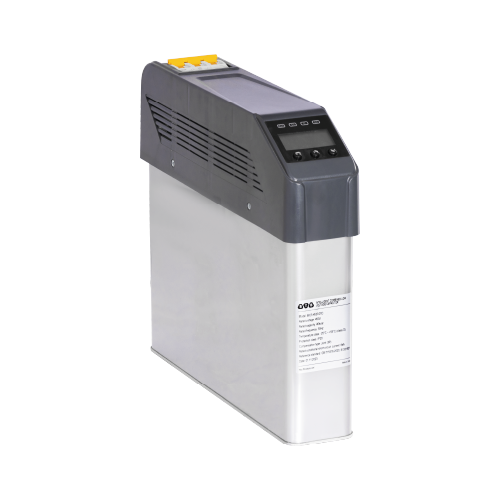

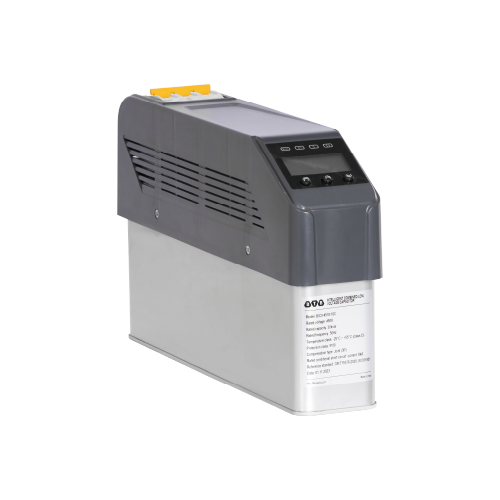

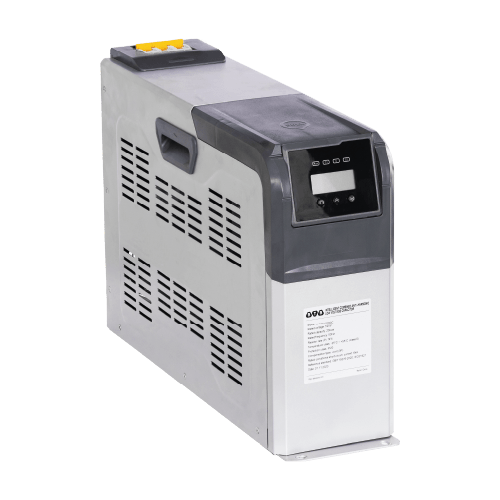

Code BIC3
Power range: 10~60kVAr
Connection: 3P (three phase)
Features
- New generation box type
- Automatic control
- Communication protocol Modbus / DL645 protocol
- Protective function U / I / THD / over-temperature
- Integrated 7% & 14% Harmonic Resistance
- Reduce installation time
- Compliance to standard GB/T15576-2008
Specification
Standards: IEC/EN 61921 & GB/T15576-2008
Type: New generation box type, Self healing
Rated voltage (Un): 250V to 525V ±20%
Frequency (fn): 3 - phase
Power range: 5 to 60 kvar
Capacitance tolerance: -5% / +10%
Reactance ratio (%): 7% / 14% (for BIC series with reactors)
Dielectric: Metallized polypropylene film with Zn/Al alloy
THDv: ≤4% and ≤5% (for BIC series with reactors)
THDi: ≤20%
Communication interface: RS485
