Power factor relay
Power factor relay
Code: PFR
Power Factor Relay are used for the measurement and control of power factor correction units for central reactive power compensation
Features
- Manual, auto switching control
- Automatic C/K and rated step adjustment
- Automatic CT polarity correction
- Alarm Relay
- User-friendly setting
- Expected electrical life > 100000 operations at output relay rated current
Specification
Standards: IEC/EN 61000-6-2

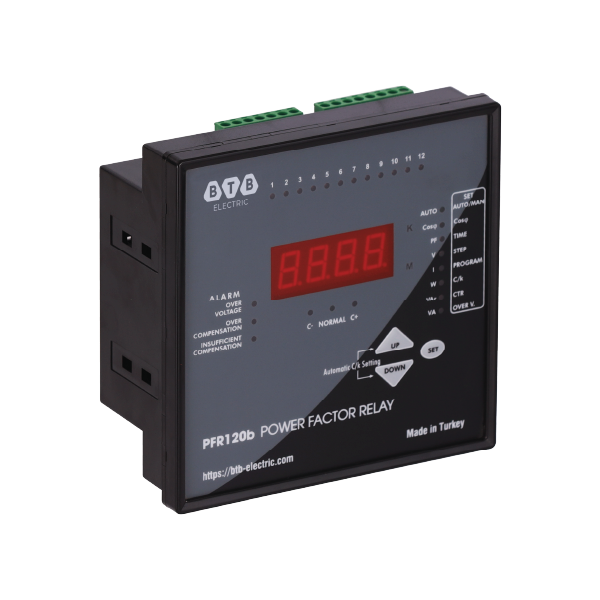

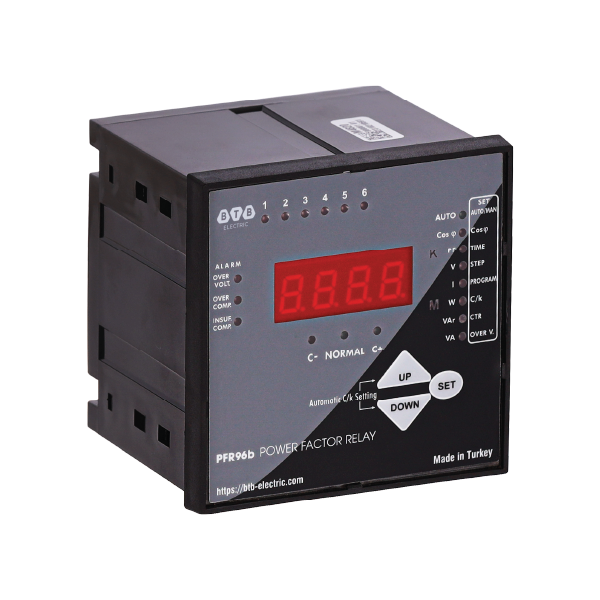

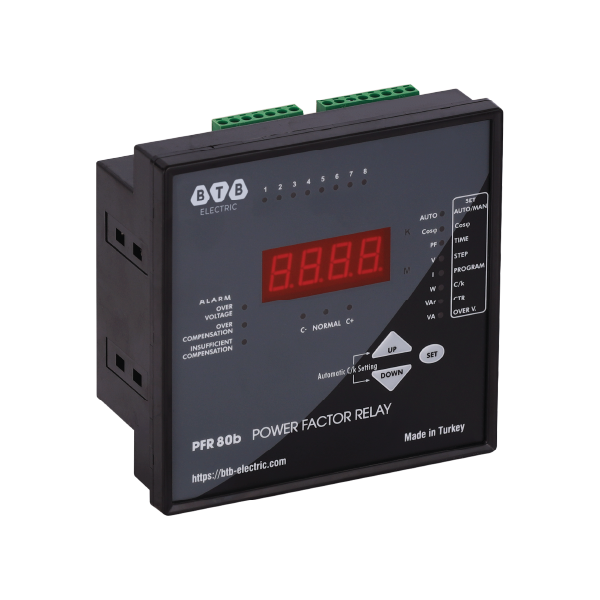

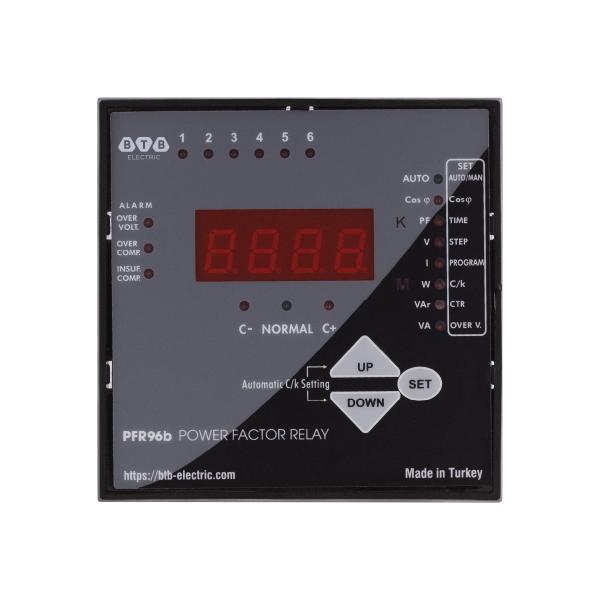

Code: PFR96b, PFR60b/ PFR80b / PFR120b
Numbers of outputs: 6, 6 / 8 / 12
Rated voltage: 240V/415V
Operating current range: 50mA ~ 5.5A
Frequency: 50/60Hz
Expected mechanical life: > 5000000 operations
Alam relay: 1NO
Cosφ setting: 0.85 (ind.) - 1.00
CT value: 5 ~ 10000/5
Display screen: LED
Measure: Cosφ, PF, V, I, W, Var, VA
Dimension (HxWxD): 143x143x67mm / 96x96x91mm
