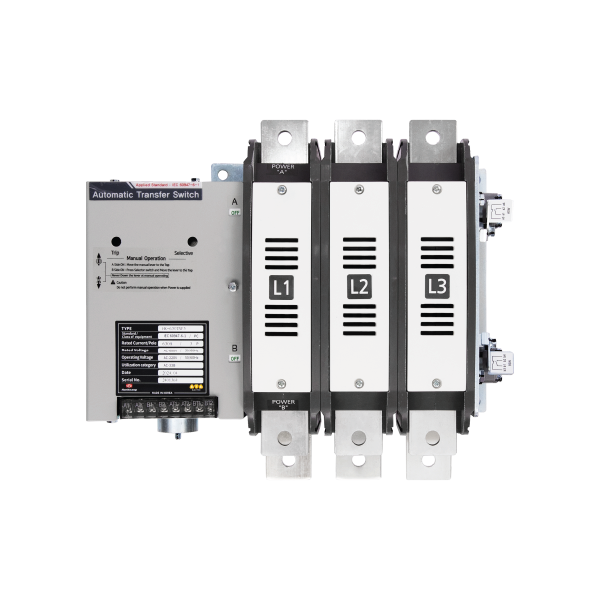

Automatic transfer switches
![](https://btb-electric.com/wp-content/uploads/2024/03/automatic-transfer-switches-btb-img-logo.jpg)
![](https://btb-electric.com/wp-content/uploads/2024/03/automatic-transfer-switches-btb-img1.jpg)
Automatic transfer switches
Device application for changing supplies
- Rated current: 63~3200A
- Poles description: 2P, 3P, 4P
- Switching sequence: A <-> B or A <-> OFF <-> B
Features
- Excellence and Characteristics: Excellent swithching performance and unfailing operation function. Most suitable for emergency power facility which is neutral position
- Safety: Safety and steady operation applying BMC mold at the breaking component. Strong protection based on latch structure.
- Single coil with transient exciting method: Power saving structure because of transient exciting method which secures reliable power. Solenoid operation.
- Unfailing insullation characteristics: Molded breaking component which is completed sealed prevent electric shock. Prevent electric accidents from alien substance.
Specification
Standards: IEC/EN 60947-6-1
Rated voltage, Ue: 600V
Rated impulse withstand voltage, Uimp: 8kV
Rated short-time withstand current lcw: 5~50kA
Rated Frequency: 50/60Hz
Pole: 2P, 3P, 4P
N-TYPE
Rated current: 63/125A, 200/250A
Switching sequence: A <-> B
Break(Opening): ≤ 50ms
Make Closing: ≤ 30ms
TN-TYPE
Rated current: 100/125A, 200/250A, 400/500A, 630/800A, 1000/1250A, 1600A, 2000/2500A, 3000/3200A
Switching sequence: A <-> B or A <-> OFF <-> B
Break(Opening): ≤ 35ms
Make Closing: ≤ 150ms
Make delay(Off): ≤ 30ms
