ATS controller
![](https://btb-electric.com/wp-content/uploads/2024/03/ats-controller-btb-img-logo.jpg)
![](https://btb-electric.com/wp-content/uploads/2024/03/ats-controller-btb-img1.jpg)
![](https://btb-electric.com/wp-content/uploads/2024/03/ats-controller-btb-img2.jpg)
![](https://btb-electric.com/wp-content/uploads/2024/03/ats-controller-btb-img3.jpg)
Code ATbS C53 / C55 / C56
Control: A <-> B or A <-> OFF <-> B or 2 ACB or 2 Contactor
Application: Controls all ATS currently on the market

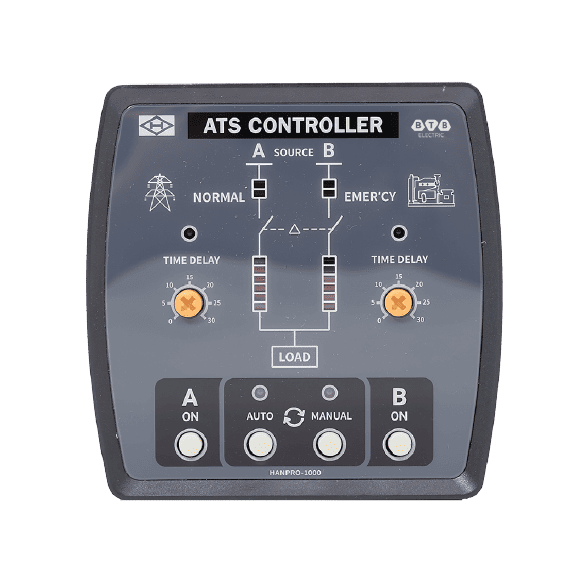

Code Hanpro1000
Control: A <-> B (N), A <-> OFF <-> B (TN)
Application: Controls all ATS currently on the market
- System type can be set to: Mains - Generator, Generator - Mains, Mains - Mains
- Auto/Manual mode transfer function: in manual mode, user can control the switch to close or open
- Commissioning can be done on site manually to execute genset start/stop operations
- 2-way N wire isolated design
- AC supply power can be phase voltage (L, N), supply range: (170~277)V
- Suitable for various AC system types (3-phase 4-wire, single-phase 2-wire, and 2-phase 3-wire)
- Breaker close output can be set to pulse or continuous output
- Over/under voltage, over/under frequency, loss of phase reverse phase sequence function
Operating voltage: 170~277V
AC voltage input: 3P4W (170~277V ph-N) / 1P2W (170~277V)
Rated frequency: 50/60Hz
Control: A<-> B or A <-> OFF <-> B or 2 ACB or 2 Contactor
System type set: A Mains B Gen / A Gen B Mains / A Mains B Mains
Switch type: two Breaking / One Breaking / No Breaking
AC system: 3P4W / 3P3W / 2P3W / 1P2W
Auxiliary output setting: Yes
Auxiliary input setting: Yes
Function: Over/under voltage, over/under frequency, reverse phase sequence loss
Close / Open relay capacity: 8A / 250VAC
