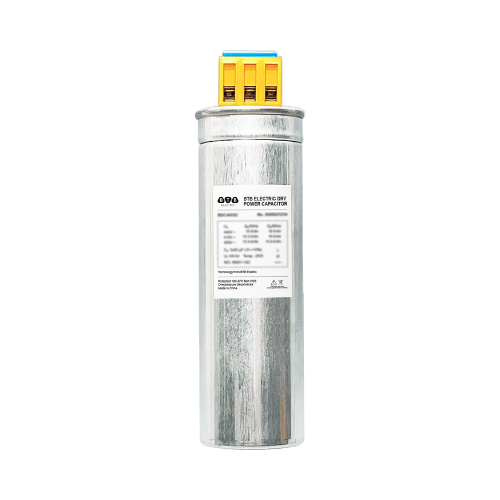

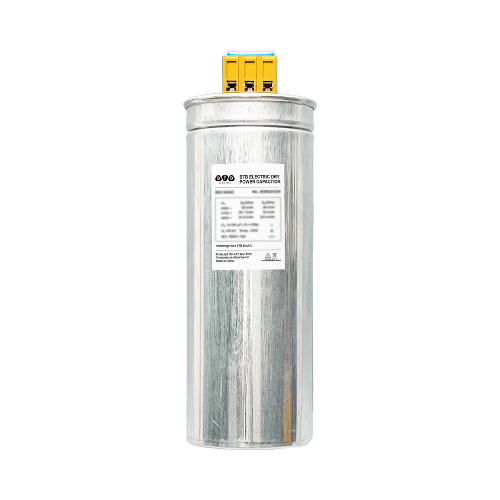

Dry Power Capacitor BDC 3P 5kVAr 240V
Document
Dry power capacitor
Explosion-proof Capacitor – Safety through pressure relief disconnect mechanism
With low losses, the capacitor operates cooler, extending its lifespan – a feature not typically achieved by lower-quality products. This low-voltage power factor correction capacitor optimizes performance, reliability, and safety, while helping reduce electricity costs. The capacitor operates stably over the long term, with a Total Harmonic Distortion (THDu) of up to 3%.
- Power range: 5~30kVAr
- Rated voltage: 240~525V
- Connection: 3P (D)
- Dry type, cylindrical aluminium case
- Maximum permissible current 1.5In
- Maximum inrush current 200In
- Loss < 0,2W/kVAr
- Statistical Life Expectancy > 130,000 operating hours
- Equipped with pressure activated series interruptor
Read more
Product
1 - 12
of
15 products
Bộ lọc
Specifications
Explosion-proof Capacitor – Safety through pressure relief disconnect mechanism
With low losses, the capacitor operates cooler, extending its lifespan – a feature not typically achieved by lower-quality products. This low-voltage power factor correction capacitor optimizes performance, reliability, and safety, while helping reduce electricity costs. The capacitor operates stably over the long term, with a Total Harmonic Distortion (THDu) of up to 3%.
- Power range: 5~30kVAr
- Rated voltage: 240~525V
- Connection: 3P (D)
- Dry type, cylindrical aluminium case
- Maximum permissible current 1.5In
- Maximum inrush current 200In
- Loss < 0,2W/kVAr
- Statistical Life Expectancy > 130,000 operating hours
- Equipped with pressure activated series interruptor
